MPI workloads performance on MapR Data Platform Part 1 by Nicolas A Perez

If there is a problem that Computer Science students enjoy solving, that is finding prime numbers. There are different ways to do so, from very naive solutions to using very complex ones. In our example, we will use the 'sieve of Eratosthenes', but we will are not adding some possible optimizations for the sake of clarity of the code. Either way, both implementations, the one using MPI and the one using Apache Spark, will not have optimizations and will focus on the raw algorithm.

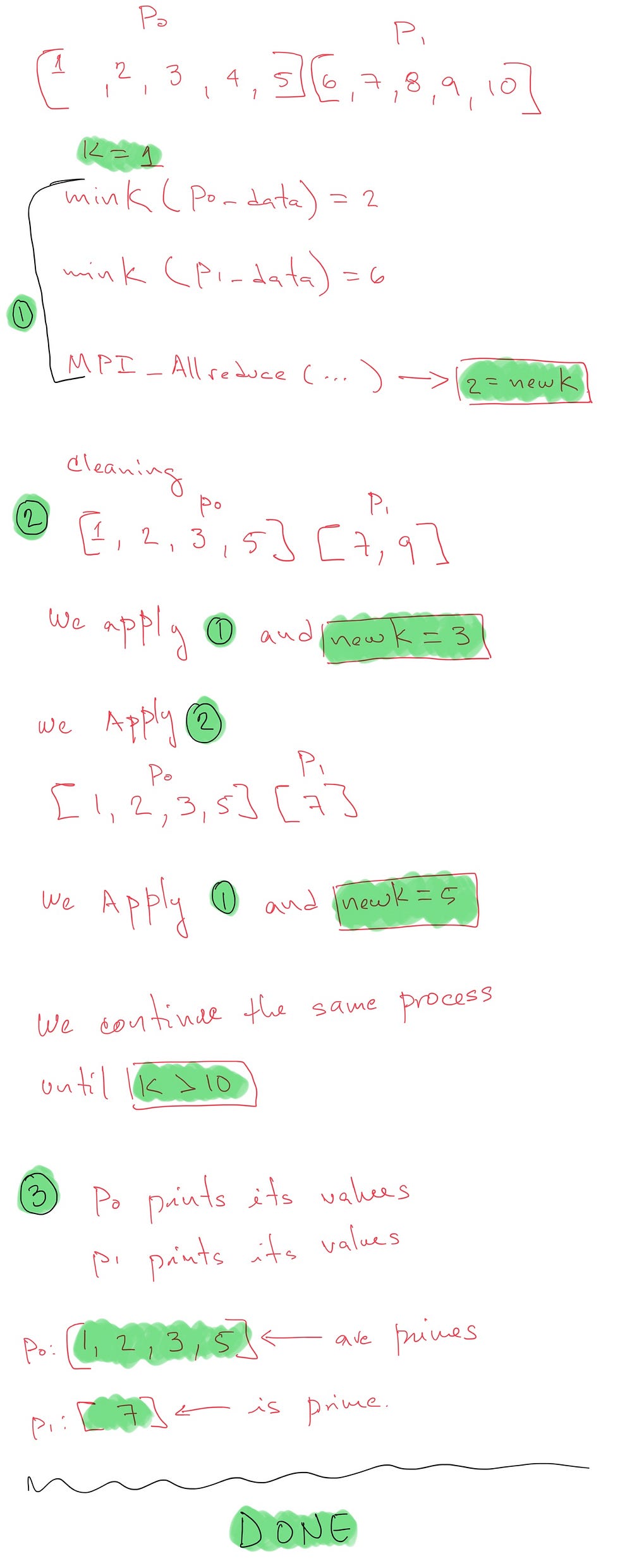

The following image shows how the algorithm works for finding primes less than the value '10' using '2' parallel processors. Think about scaling to a really large number of processors using the same techniques.

Now, let's implement this idea using MPI.

Let’s first start by some of the supporting functions we need. As we saw in the image above, each processor only has a piece of the data, in other words, our data is partitioned over the number of processors participating in the calculation.

The following function is called by each process and initializes the processor’s data.

1  low = BLOCK_LOW(id, p, n);
2  size = BLOCK_SIZE(id, p, n);
3
4  long *init_local_data() {
5      long *data = calloc((size_t) size, sizeof(long));
6
7      for (long i = 0; i < size; ++i) {
8          data[i] = low + i;
9      }
10
11     return data;
12 }

Now, each processor needs to filter its own dataset based on a 'k' value, in other words, if a value is divisible by 'k', then it is not 'prime' and should be eliminated.

1 void filter_non_primes(long k, long *data) {
2     for (int i = 0; i < size; ++i) {
3         if (data[i] != k && data[i] % k == 0) {
4             data[i] = 0;
5         }
6     }
7 }

After this, the next 'k' value must be globally selected, so each processor should select it’s own local 'k' and then they (all processors) should agree on a global 'k' value that is going to be used on the next iteration. The following function selects the local 'k' value.

1 long local_min(const long *data, long k) {
2     long min = LONG_MAX;
3
4     for (int i = 0; i <size; ++i) {
5         if (data[i] > 0 && data[i] > k && data[i] < min) {
6             min = data[i];
7         }
8     }
9     return min;
10 }

Now, our application becomes the following.

1 long k = 1;
2
3 long *data = init_local_data();
4
5 while(k <= n) {
6     long local_next_k = local_min(data, k);
7
8     MPI_Allreduce(&local_next_k, &k, 1, MPI_LONG, MPI_MIN, MPI_COMM_WORLD);
9
10     filter_non_primes(k, data);
11 }

Notice that the 'MPI_Allreduce' is used to 'agree' on the global minimum, next 'k' value.

The entire MPI code is the following.

1 #include <stdio.h>
2 #include <mpi.h>
3 #include <stdlib.h>
4 #include <limits.h>
5
6 #define BLOCK_LOW(id, p, n)  ((id)*(n)/(p))
7 #define BLOCK_HIGH(id, p, n) (BLOCK_LOW((id)+1,p,n)-1)
8 #define BLOCK_SIZE(id, p, n) (BLOCK_HIGH(id,p,n)-BLOCK_LOW(id,p,n)+1)
9
10 int p, id;
11 long low, size, n;
12 int print_numbers;
13
14 long *init_local_data();
15 long local_min(const long *data, long k);
16
17 void filter_non_primes(long k, long *data);
18
19 int main(int argc, char *argv[]) {
20
21     if (argc > 0) {
22         n = atoi(argv[1]);
23     }
24
25     if (argc > 1) {
26         print_numbers = atoi(argv[2]);
27     }
28
29     MPI_Init(&argc, &argv);
30
31     MPI_Barrier(MPI_COMM_WORLD);
32     double elapsed_time = -MPI_Wtime();
33
34     MPI_Comm_size(MPI_COMM_WORLD, &p);
35     MPI_Comm_rank(MPI_COMM_WORLD, &id);
36
37     low = BLOCK_LOW(id, p, n);
38     size = BLOCK_SIZE(id, p, n);
39
40     long k = 1;
41
42     long *data = init_local_data();
43
44     while(k <= n) {
45
46         long local_next_k = local_min(data, k);
47
48         MPI_Allreduce(&local_next_k, &k, 1, MPI_LONG, MPI_MIN, MPI_COMM_WORLD);
49
50         filter_non_primes(k, data);
51     }
52
53     elapsed_time += MPI_Wtime();
54
55     if (!id) {
56         printf("elapsed time: %lf\n", elapsed_time);
57     }
58
59     //print the prime numbers
60     if (print_numbers == 1) {
61         for (int i = 0; i < size; ++i) {
62             if (data[i] != 0) {
63                 printf("[%d]: prime: %ld\n", id, data[i]);
64             }
65         }
66     }
67
68     free(data);
69
70     MPI_Finalize();
71
72     return 0;
73 }
74
75 void filter_non_primes(long k, long *data) {
76     for (int i = 0; i < size; ++i) {
77             if (data[i] != k && data[i] % k == 0) {
78                 data[i] = 0;
79             }
80         }
81 }
82
83 long *init_local_data() {
84     long *data = calloc((size_t) size, sizeof(long));
85
86     for (long i = 0; i < size; ++i) {
87         data[i] = low + i;
88     }
89     return data;
90 }
91
92 long local_min(const long *data, long k) {
93     long min = LONG_MAX;
94
95     for (int i = 0; i <size; ++i) {
96         if (data[i] > 0 && data[i] > k && data[i] < min) {
97             min = data[i];
98         }
99     }
100
101     return min;
102 }

We can try running this application on a 6 node MapR cluster by doing

mpirun -np 6 --oversubscribe sieves_of_eratosthenes 100000 0

elapsed time: 5.550563

As we can see it can, it calculates all prime number smaller than '100000' in around 5.5 seconds.

If we run the same application with the same 6 nodes MapR cluster, but using a larger number of processor (we can do this because of the number of CPUs on each node) let’s see what happens.

mpirun -np 24 --oversubscribe sieves_of_eratosthenes 1000000 0

elapsed time: 7.580463

As we can see, the application runs on impressive time considering the number of calculations being executed.

Now, the same application can be implemented in Spark. I will try to keep the code as simple as possible while going over the different parts of it.

The 'run' function creates the data that is partitioned and distributed across the cluster. Then it calls the 'clean' functions.

1
2   def run(n: Int)(implicit sc: SparkContext): RDD[Int] = {
3
4     val data = sc.parallelize(1 to n)
5
6     val k = 2
7
8     clean(data, k, n, 0)
9   }

The 'clean' function filters the data based on the 'k' value as we did before on the MPI implementation. Then it calls 'nextK' to find the next 'k' value.

1 def clean(data: RDD[Int], k: Long, n: Int, checkPointTime: Int)(implicit sc: SparkContext): RDD[Int] = {
2     if (k > n) {
3       data
4     }
5     else {
6       val filtered = data.filter(v => v <= k || v % k != 0)
7
8       clean(filtered, nextK(filtered, k), n, checkPointTime + 1)
9     }
10   }

The 'nextK' function just select the next possible value for 'k'.

1 def nextK(data: RDD[Int], k: Long)(implicit sc: SparkContext) = {
2
3     val xs = data.filter(_ > k)
4
5     if (xs.isEmpty()) Int.MaxValue else xs.first()
6
7 }

It is important to notice that in here we are calling '.first' that semantically equals the synchronization step that we implemented before using 'MPI_Allreduce'.

The entire code looks like the next snippet.

1 package com.github.anicolaspp.sieves
2
3 import org.apache.hadoop.fs.{FileSystem, Path}
4 import org.apache.spark._
5 import org.apache.spark.rdd.RDD
6 import org.joda.time.DateTime
7
8 object App {
9
10   def main(args: Array[String]): Unit = {
11
12     val n = args(0).toInt
13
14     val conf = new SparkConf()
15       .setAppName("sieves")
16       .set("spark.driver.extraJavaOptions", "-Xss40M")
17
18     implicit val sc = new SparkContext(conf)
19     sc.setLogLevel("ERROR")
20     sc.setCheckpointDir("/Users/nperez/tmp/")
21
22
23     val (primes, timeLapse) = time(run(n))
24
25     println("time in MS: " + timeLapse)
26
27     sc.stop()
28   }
29
30
31   def run(n: Int)(implicit sc: SparkContext): RDD[Int] = {
32
33     val data = sc.parallelize(1 to n)
34
35     val k = 2
36
37     clean(data, k, n, 0)
38   }
39
40   def clean(data: RDD[Int], k: Long, n: Int, checkPointTime: Int)(implicit sc: SparkContext): RDD[Int] = {
41     if (k > n) {
42       data
43     }
44     else {
45
46       if (checkPointTime % 1000 == 0) {
47         val fs = FileSystem.get(sc.hadoopConfiguration)
48         if (fs.exists(new Path("Users/nperez/tmp/data"))) {
49           fs.delete(new Path("Users/nperez/tmp/data"), true)
50         }
51
52         data.saveAsObjectFile("Users/nperez/tmp/data")
53
54         val reload = sc.objectFile[Int]("Users/nperez/tmp/data")
55
56         clean(reload, k, n, 0)
57       } else {
58
59         val filtered = data.filter(v => v <= k || v % k != 0)
60
61         clean(filtered, nextK(filtered, k), n, checkPointTime + 1)
62       }
63     }
64   }
65
66   def nextK(data: RDD[Int], k: Long)(implicit sc: SparkContext) = {
67
68     val xs = data.filter(_ > k)
69
70     if (xs.isEmpty()) Int.MaxValue else xs.first()
71
72   }
73
74   def time[A](fn: => A) = {
75
76     val start = DateTime.now()
77
78     val a = fn
79
80     val end = DateTime.now()
81
82     (a, end.getMillis - start.getMillis)
83   }
84
85 }

Notice that there is a piece where we write our RDD down and reload it. This is necessary since the recursion step causes an issue with the DAG linage. There is not a simple solution around it, but ours solves the problem without major complications.

As we can see, in Spark we have higher levels of abstraction which ultimately makes our code simpler, but how fast is this code compare to our MPI code when executed on the same MapR cluster?

When running on the same MapR cluster, the Spark application is about 10x slower, part of it is the read and write of data to/from HDFS, but that only adds a small part of processing time.

Notes on MapR and MPI

We mentioned before that our tests are focused on CPU bound operations since MPI has some disadvantages when accessing HDFS data. However, since we are talking about MapR specifically, we could use the fully POSIX client instead of the HDFS interface. This means, that using pure C and MPI, we could access the distributed file system exposed by MapR without any problems. In a follow-up post, we will look at how good MPI is at accessing large scale data sets stored in MapR using the POSIX client.

Conclusions

If you thought that MPI was something from the past, you might want to reconsider. Even with lower abstractions, it is more than capable, especially when running in modern platforms like MapR. However, that puts a big question around classical HPC systems. The future is unknown, but MPI is a very well built technology, I will be surprised if it does not get included as part of the big data ecosystems soon enough. On the other hand, Apache Spark is the other monster in the room, and with higher abstractions, it is perfect for almost everything you can think of, thus it makes a lot of sense to master such tool even when sometimes it might perform worst than MPI.
